Years of hard work finally paid off last week as the country’s biggest and most important transport project, the City Rail Link reached a major milestone with the first test train making its way slowly though the tunnels for the first time. This is a fantastic achievement and it is very exciting to finally get to this stage, even though there is still a lot more work to go before we can finally catch a train through the tunnels.
We did cover this briefly in our weekly roundup but felt it deserved a bit more detail.
First up, the press release from CRL.
A giant, slow step in a journey that will transform travel in New Zealand’s largest city was completed successfully last night when a test train made its first trip through the full length of Auckland’s City Rail Link (CRL) tunnels.

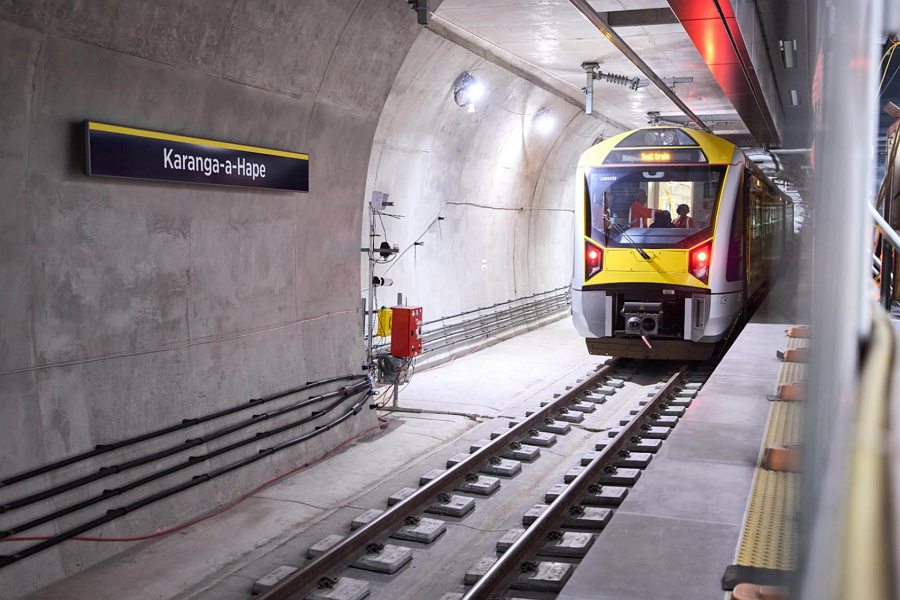

The 3.45-kilometre-long inaugural journey ran south from Waitematā Station (Britomart) under central Auckland past the new underground stations at Te Waihorotiu and Karanga-a-Hape to Maungawhau Station on the Western/North Auckland Line.
The three-carriage train left Waitematā station on time at 9pm and took two-and-a-half hours to complete its first journey. The speed was deliberately slow – around five kilometres an hour – allowing technicians to complete their first round of underground checks and balances relating to tunnel clearance, power supply and signalling. The train successfully completed five trips during the night.
…..
Getting the green signal to proceed came after exhaustive planning and safety checks that peaked last week when the tunnels’ overhead lines were energised ready to provide the electricity to power trains.
City Rail Link Ltd’s Chief Executive, Patrick Brockie, described the journey as a “colossal milestone” that the project had been working towards since spades first went in the ground at Britomart in 2016.
“City Rail Link Ltd was established to deliver NZ’s biggest infrastructure project – one that will be an absolute gamechanger for Auckland. Last night’s test run is a major step in our transition from a construction site into a railway and we now start a comprehensive testing schedule ahead of people riding the train next year,” says Mr Brockie.
…..
KiwiRail says the first end-to-end journey launched a key testing phase to confirm trains can seamlessly transition between CRL and the wider network.
“This is a huge milestone for the CRL project and all our partners. We’ve all worked tirelessly to get to this point and seeing a train make its first journey through the full length of the tunnels is true cause for celebration. Last night’s first end-to-end journey launches the key ‘dynamic’ train testing phase of the CRL project to confirm that trains and the CRL infrastructure can seamlessly integrate with the wider KiwiRail network,” says Bevan Assink, KiwiRail’s Programme Director City Rail Link.
“These tests will accelerate in the coming weeks. This includes brake testing on what is one of the steepest sections of railway in New Zealand, recovery procedures and the start of hands-on training for drivers. The start of CRL dynamic testing in the tunnels closely follows another key milestone – the successful completion of KiwiRail’s latest stage of its network upgrade programme, where significant progress was made with major network rebuild works over the summer holidays,” says Mr Assink.
…..
Mr Brockie acknowledged the work of his CRL Ltd team, the project’s main Link Alliance contractors, KiwiRail, Auckland Transport and Auckland One Rail.
“Everyone involved in being ready for the first train has the right to be proud – a great achievement that demonstrated the very best in innovation and co-operation to deliver an outstanding outcome for Auckland and its more accessible future,” he says.
NZTransitBuzz also has a video of the first train heading into the tunnel.
The first test at five kilometres an hour, even though it’s designed to be faster, how are they sure that’s not the speed AT will run the trains at anyway after they’ve finished padding the timetable out? Joking aside, there’s a lot of talk in there about the testing still be done and helpfully, CRL also provided a bit more detail on some of those tests.
Initial testing (first three days)
- Test train runs at low speed to confirm it fits within the tunnel
- Polystyrene strips temporarily fitted to increase test train’s width, simulating full speed travel to ensure tunnel clearances are adequate
- Speed gradually increases from 5 km/h in controlled steps.
- Critical brake testing underway – City Rail Link is one of the steepest sections of railway in New Zealand
- Recovery procedures tested for a train that has broken down – moved either by pushing or pulling
Week two testing and beyond
- Validation starts of CRL’s advanced European Train Control System (ETCS)
- ETCS continuously monitors speeds, braking distances and safe stopping locations; it ensures trains do not exceed speed limits – crucial for CRL’s steep gradients; allows trains to run closer together safely, enabling higher-frequency services; supports full automation in the future while still allowing human drivers.
- When ETCS is approved, train speeds increase to over 40 km/h to check tunnel clearance at full line speed
- Multiple trains can now be tested in the system at full speed (up to 70kmph).
- Hands-on driver training in the tunnel underway
- Noise and vibration monitoring will be conducted with multiple trains operating.
More than dynamic testing
- CRL is completing 8300 separate tests to be Auckland-ready in 2026
- Besides trains in the tunnel, test include mechanics, electrics, security, fire, communications and hydraulic systems for the tunnel and stations
- City Rail Link Ltd and its main contractor, Link Alliance, are working with Auckland Transport and KiwiRail making sure everything is ready for passengers from the get-go
- Ensuring CRL is safe for passengers is the number one priority
Interestingly, the first test being on the 12 February puts it almost exactly five years to the day that a sod-turning event was held at Maungawhau for the start of the main construction works on the site.
On 13 February 2020, spades in the ground at the sod-turning ceremony cleared the way for work to start on driving 66 concrete piles between 38 metres and eight metres long into the ground to support the curved-shaped retaining wall 127 metres long and 25 metres high.
The portal took 10 months to build. When completed, it became the launching pad for the TBM.
The very first works for the project were ceremonially started on 2 June 2016 raising the question of whether public services through the tunnel will start before the 10th anniversary then.
