Over the long weekend rail shutdown a new project got underway, an upgrade to Henderson station but the plans highlight that improving the customer experience by making it easier to use public transport is not a part of Auckland Transport’s agenda.
Work begins later this Labour Weekend on a third platform and additional tracks at Henderson Station, which will enable more frequent and reliable train services, as part of the City Rail Link (CRL) programme.
The Auckland Transport (AT) and KiwiRail project is expected to be completed in early 2026.
…..
AT’s Director of Public Transport and Active Modes, Stacey van der Putten says weekday train services will typically run as normal while Henderson Station is being upgraded.
“Major construction works are planned to take place while the rail network is closed during the Christmas period and long weekends in 2025. There’ll be replacement buses running during these times, so Aucklanders still have reliable public transport options.
…..
“For Western Line passengers, the third platform and major track infrastructure upgrades at Henderson mean more frequent trains that can connect them to more places across Auckland.”
In addition to the new track and platform, other modifications to Henderson Station include the construction of a new emergency exit bridge at the southern end of the station, upgrades to the track layout, overhead lines and signalling equipment, improving the track drainage system, and adding a new staff facility. Having staff based in Henderson will allow faster responses to any issues on the Western Line.
The third platform allows some trains to be turned around at end of service (operational improvement), while keeping two tracks available for trains travelling to Swanson.
Additionally, all of the lifts and escalators at Henderson Station will be replaced, as they have reached the end of their serviceable life.
This portion of the project will start from mid-November 2024, with completion anticipated in June 2025. The replacements have been sequenced to minimise disruption felt by passengers, meaning that no additional timetable changes or station closures will be required.
There are a few different things in there so let’s break it down.
First the good, that AT will be replacing the lifts and escalators at the station. As I highlighted back in March, the lifts at Henderson have been incredibly unreliable of late with outages on at least one of the lifts on a combined 167 days over the course of a year. This made the station unusable for many people including those with disabilities or or parents with prams.
There will obviously be more disruption to access as these are replaced over the coming eight months but at least there is an end in sight.
Less good is the additional platform to turn trains around. As I’ve argued before, this should have been built at Swanson.

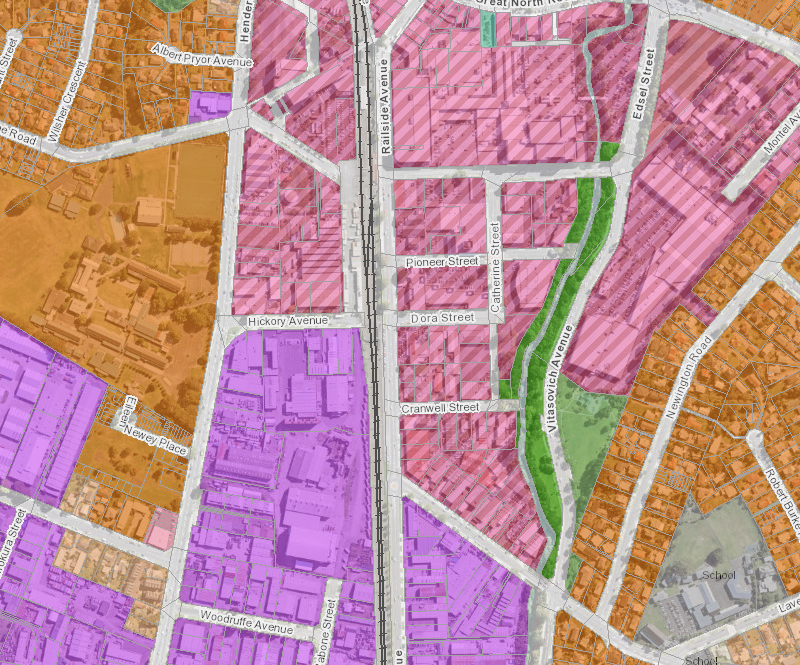

There are over 30,000 people living in proximity to the three rail stations west of Henderson and that will continue to grow as more housing gets added. Based on 2019 data before COVID, the three stations combined were the equivalent to 5th busiest on the network. They will only get busier once the City Rail Link dramatically improves the network, especially if AT and Kiwirail can get the rail network up to speed as they could be 40 minutes or less from the centre of the city. Particularly at peak times, this will become much faster and more reliable that driving. All up there is a huge potential for growth in usage from this area but that will be limited if AT don’t extend the additional services the CRL enables west of Henderson.
To me this feels like it’s all about a focus on moving trains rather than moving people.

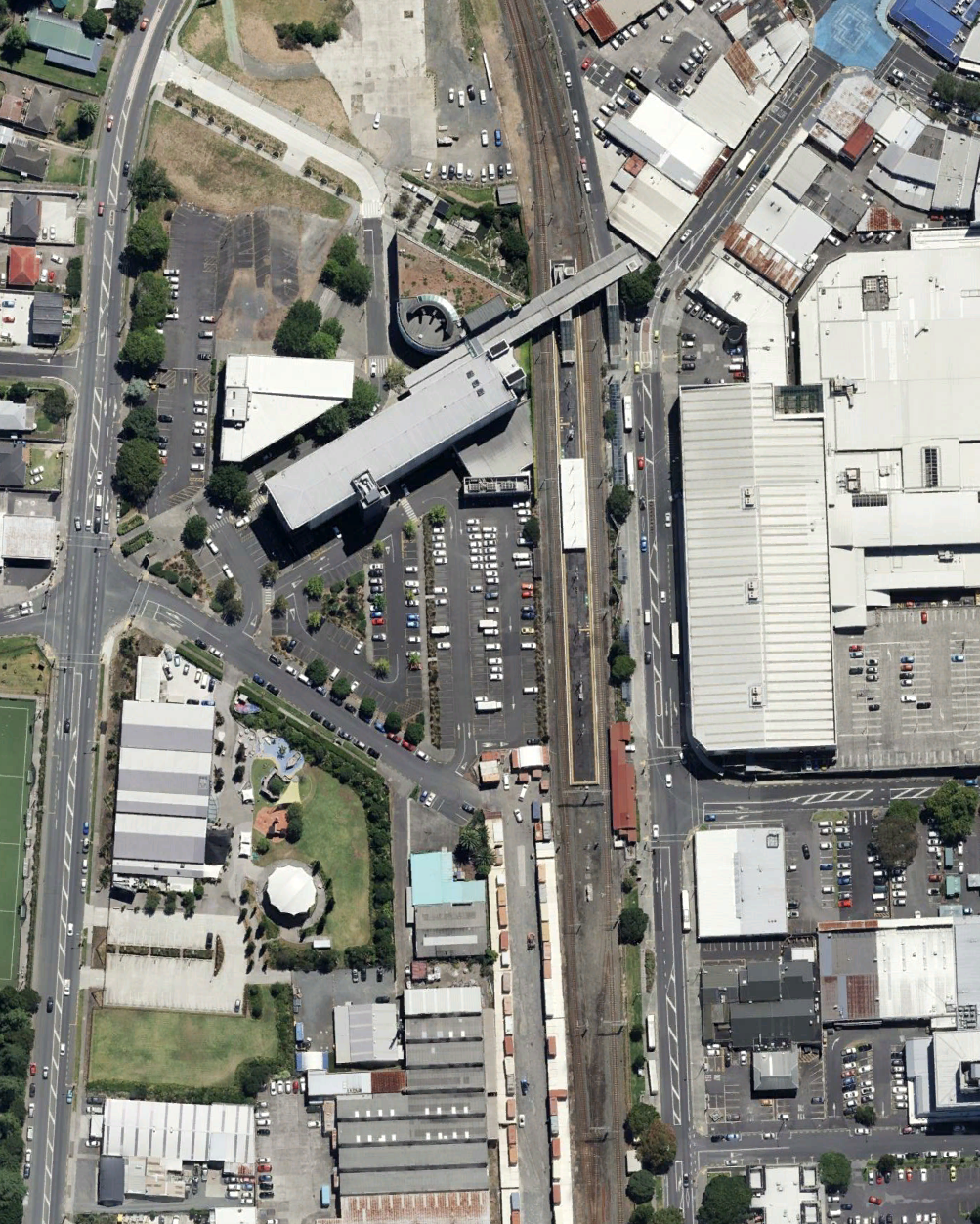

As for the upgrade itself, AT provided me this image of what is planned for the station and it is quite different to earlier plans (shown later in the post).

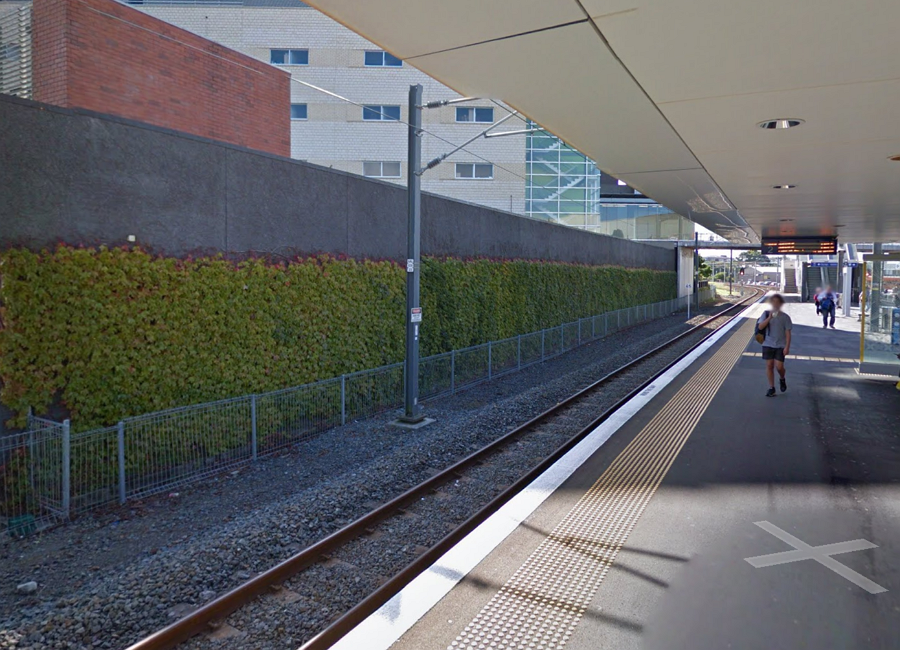

By my estimate, this will involve extending the existing platform by around 120m to the south and turning the existing Platform 2 into a dock platform. A new Platform 3 will then be created by widening and extending the northern end of the platform with a new track squeezed west of the existing track, up against the green wall.
The previous plan for additional platforms are shown below and shows new platforms in the carpark beside the existing station. New access would also have been needed though the former council building and I wonder if that was impacted by the sale of the building, of if they were just trying to avoid the need for additional lifts and escalators etc.
By having such a long platform, if you happen to be at the back of a train that terminates here, you’ll have around a 300m walk just to get out of the station.
My biggest concerns related to the new southern bridge and the lack of station/platform amenities.
The first of these is the question of why the new southern bridge is only going to be used for emergencies rather than for the public which could help make the station easier to access. AT gave me this answer.
The Southern Access Bridge is being provided as a secondary egress route due to the length of platform and need to maintain diverse egress routes. It also functions as an access to the train drivers break facility.
As for why it is not being proposed as a public entrance, from the Western side of the Rail Line, the point of entry to the wider station precinct would be at the Smythe Road / Henderson Valley Road intersection, which is served by the current access bridge. Therefore, for passengers coming from the Western side of the Rail Corridor, this provides limited value. For passengers coming from the Eastern Side of the corridor, the main destinations or passenger catchment areas are the Henderson Mall, Bus Interchange and Town Centre, all of which are optimally served by the current entry. The area that would be served by the Southern Access if it was made public, would be largely industrial areas at the Southern End of Railside Avenue, which are not a source of significant demand.
To me this doesn’t hold up. Sure, maybe adding a new bridge wouldn’t be a justified if it was just for improving access – though I feel we should be making all stations as easy to access as possible. But if the bridge is being built anyway, why not make the most of it. To get to the exit of that bridge via the current access is about a 300m walk so opening this up to the public is a 300m extension to the walking catchment.
To me this feels like AT falling into the trap of thinking that the current land use and travel patterns are permanent and can’t be changed. In reality most of the land around and just southeast of the station, as far View Rd, has metropolitan centre zoning which means it could quite easily be redeveloped with more intense uses and that’s far more likely to happen after the CRL when Henderson could be just 30 minutes from the city.
The other amenities I’m concerned about is the shelter. AT are adding a few bus shelters to the platform rather than proper shelter. More concerning is
- There will now also be quite a gap between the existing canopy and the edge of Platform 3.
- There exists a 30m gap between the base of the escalators and the existing canopy. More than a few times I’ve been caught in heavy rain getting between the two. Why can’t AT at least add something like at Ellerslie to provide a bit of protection
It would also be good if AT could put some passenger displays on the existing bridge used to access the station. At the moment you have to tag on to get through the gates and then go down to the platform to find out if/when a train is due.
There are plenty of often small improvements at many of our stations that could make them much easier and more comfortable to use. Upgrades like this one at Henderson are the perfect time to make those.
