As I reported about the city centre, Auckland’s rail network is also going through a difficult and disruptive period which is rapidly approaching a culmination, which will result in a significant upgrade to the whole network. Hallelujah.
Also like the city centre, this is an upgrade predicated on the City Rail Link. Through 2025 and certainly by early/mid 2026 we should all be experiencing a hugely improved railway; much more reliable, with higher capacity, and potentially higher frequency. Maybe even an all-day turn-up-and-go Metro style urban system, though that depends on choices made about how to run and manage the competing services on the rebuilt network.

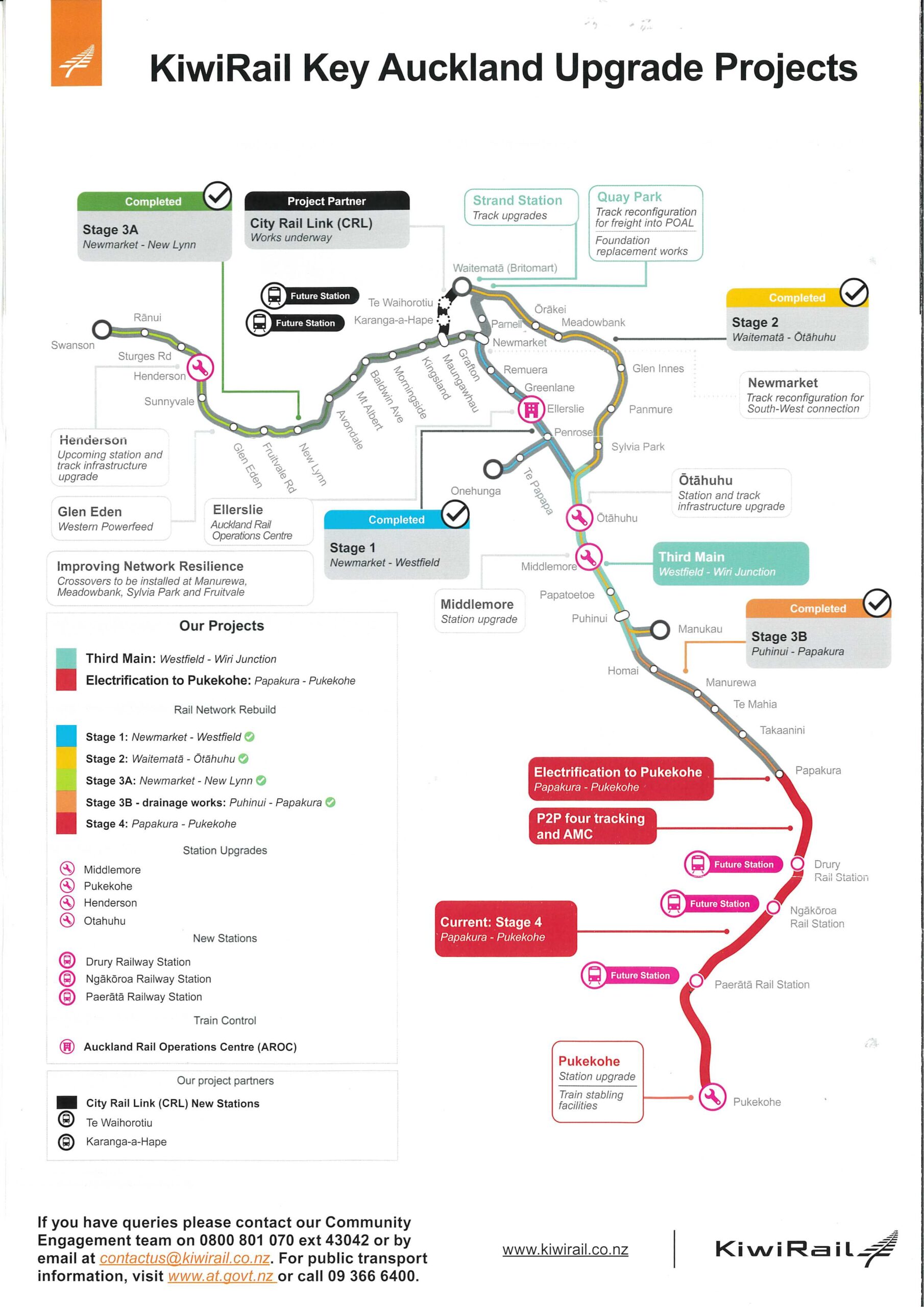

Both the CRL and the Pukekohe overhead wires are going live, with testing starting very soon. The inner core of all three main lines – New Lynn to Ōtāhuhu – is now all rebuilt, and should be functioning near faultlessly (once teething troubles are over). This is all getting very real.
![](https://i0.wp.com/www.greaterauckland.org.nz/wp-content/uploads/2024/07/AKL-Rail-Upgrade-Projects-scaled.jpg?w=1140&ssl=1)
The Third Main, along the busiest section of track in the nation, is approaching completion at Middlemore, and while it is the shortest possible bit of meaningful duplication, its critical location means it will have very real positive impacts on all rail services. See the benefits below.
![](https://i0.wp.com/www.greaterauckland.org.nz/wp-content/uploads/2024/07/Third-Main.png?w=1140&ssl=1)
This section – from the Manukau City Branch line and Metro depot up to the Westfield Junction, where the Southern and Eastern lines meet, and with both Auckland freight depots, Metroport and Wiri, on its length – really needs be four tracks. This is where the Southern and Manukau City lines overlap, as well as all freighters and Intercity trains from the south. So it is very good to see Kiwi Rail pursuing designation for quad-tracking all the way from Pukekohe to the Westfield junction.
The next section, south of Wiri to Papakura, would also benefit hugely from getting a dedicated freight/ Intercity/ express track, or ideally two. This area is the subject of today’s post.
As these projects above are completed, investment is due to wind down for rail given the new government’s priorities are elsewhere, as we know. However, the RLTP includes one more major project:
![](https://i0.wp.com/www.greaterauckland.org.nz/wp-content/uploads/2024/07/RLTP-AC.png?w=1140&ssl=1)
Looking at this project as currently proposed, I feel it could productively be redesigned to align more with future rail plans, particularly extending the third main through here. There is time for consideration, as noted in the snippet above: this is to happen ‘in the outer years’ of the 10 year RLTP.
Let’s have a look.

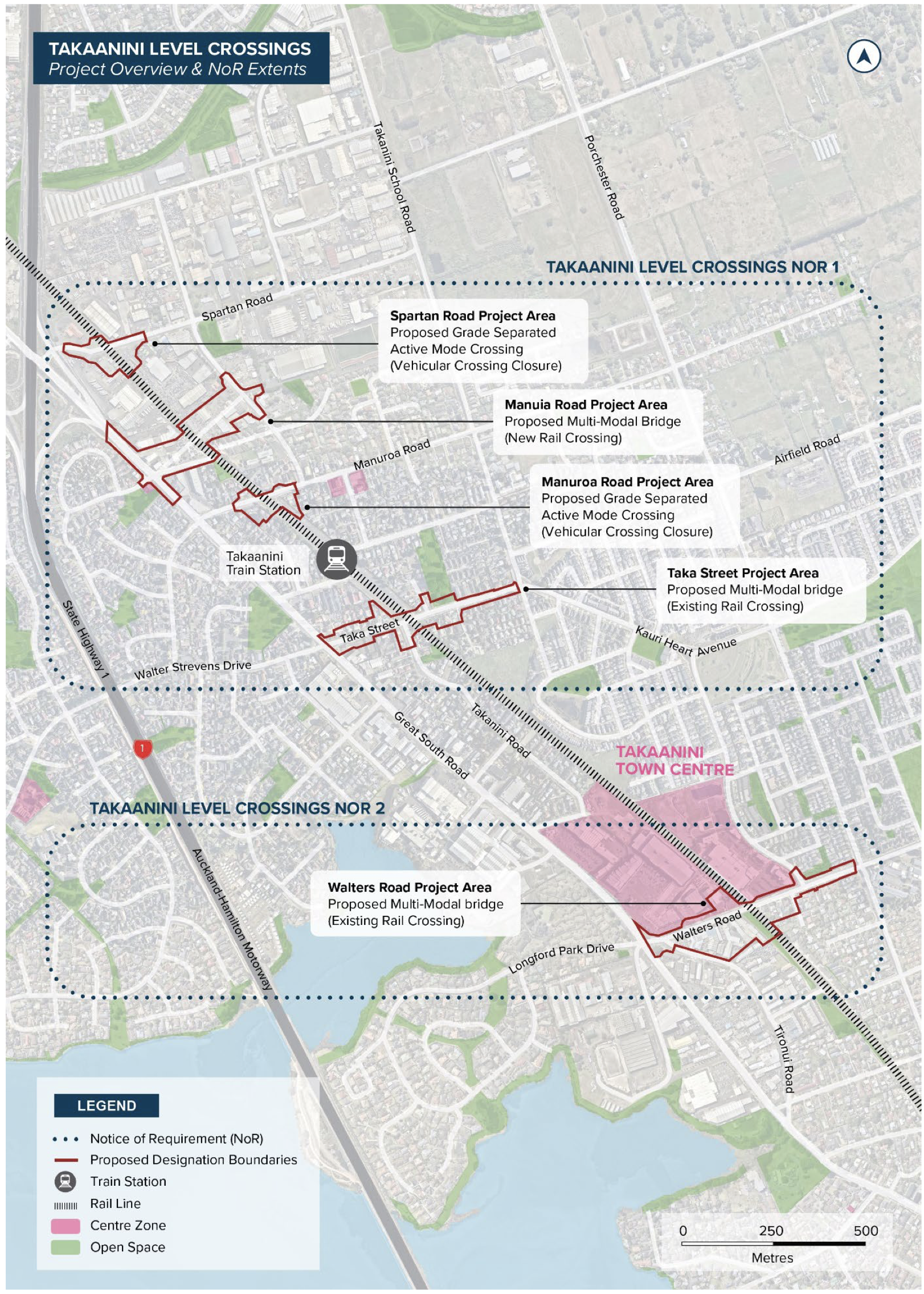

![](https://i0.wp.com/www.greaterauckland.org.nz/wp-content/uploads/2024/07/Takaanini-Group-designations.png?w=1140&ssl=1)
Level crossing removal [LXR] absolutely improves rail performance, but the primary benefit goes to road users who no longer have to give way to rail traffic that has priority.
In fact, the main way LXR improves rail performance is that it removes the artificial constraints imposed on rail traffic to not delay drivers so much, i.e. by having barrier arms down. There are other safety and crash reduction impacts on both road and rail networks, too.
But, as can be seen very clearly from the designation outlines above, currently this is imagined very much as a big roading project, with significant land take along roads. This land acquisition does not widen the rail corridor for additional track.
There is another significant impact that I feel we do not take into sufficient consideration in our usual processes: place quality outcomes. I will write more about this for the Western line LXR in the future, where there are really a lot of opportunities. But as this is the more urgent group of level crossings to remove, let’s start here.
And let’s start with an example from a peer city. Melbourne is deep into a huge, and hugely successful, LXR programme. I have visited a number of these locations, and by far the most successful are when the rail line has been elevated over that mostly flat city.
This works so well in so many ways – not least for the rail passenger, as the view from the elevated trains and platforms are such an upgrade on being at ground level, let alone in a trench of tunnel. Elevation also allows for great bus and bike connections and creates public space under the stations on the contiguous ground plane. It heals the severance previously caused by long uninterrupted lengths of rail line, and allows a whole new public realm and connecting active mode paths.

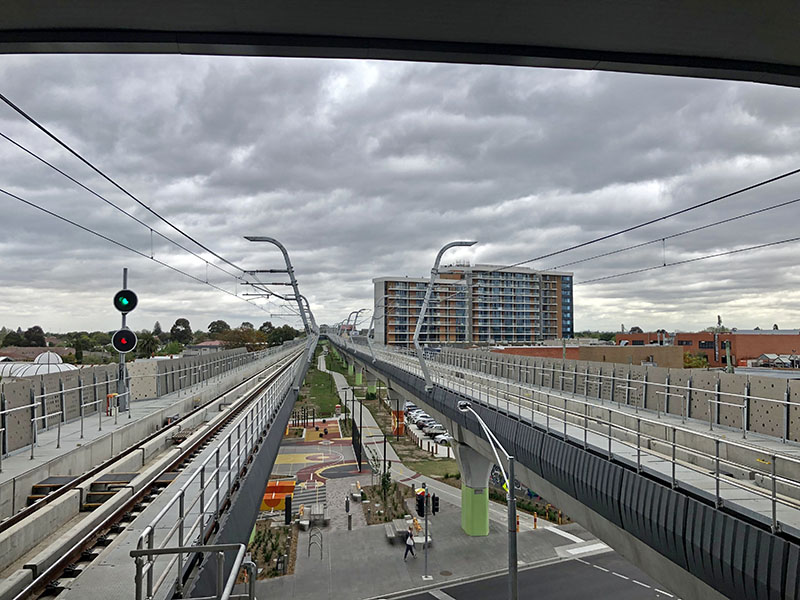

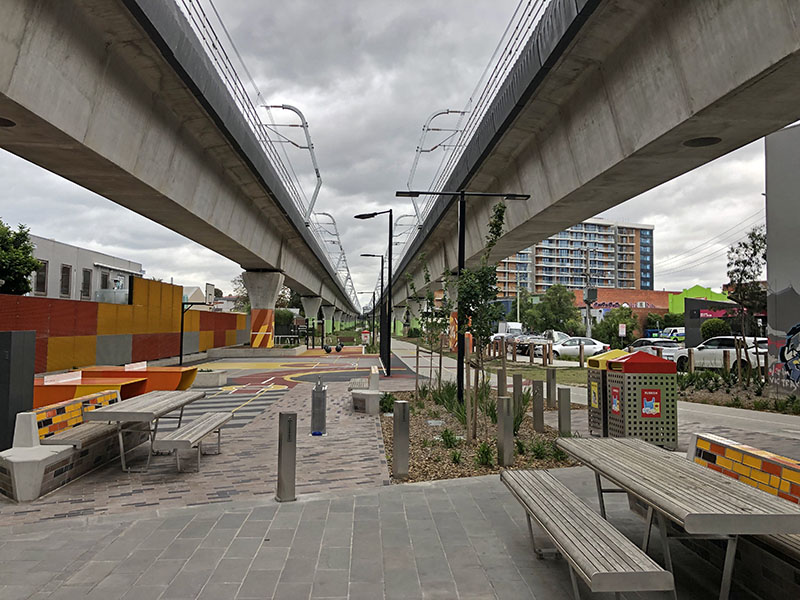

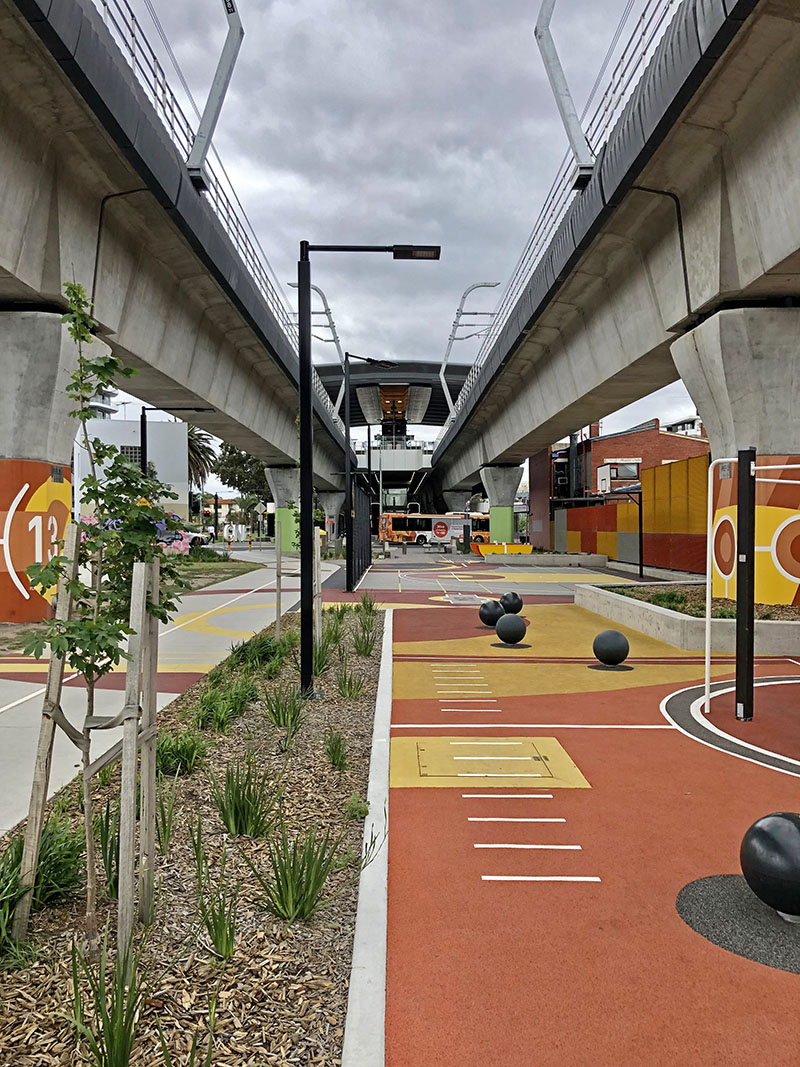

Here’s a few shots I took on a nasty day in 2019 at the Carnegie Station on the Cranbourne-Packenham line:
![](https://i0.wp.com/www.greaterauckland.org.nz/wp-content/uploads/2024/07/CARNEGIE-STATION_1.jpg?w=1140&ssl=1)
![](https://i0.wp.com/www.greaterauckland.org.nz/wp-content/uploads/2024/07/CARNEGIE-STATION_2.jpg?w=1140&ssl=1)
![](https://i0.wp.com/www.greaterauckland.org.nz/wp-content/uploads/2024/07/CARNEGIE-STATION_3.jpg?w=1140&ssl=1)
Coming back to our city: the terrain is largely flat on this area of the North Island Main Trunk line (NIMT), and it would be great to free up space like this through South Auckland for local use. As described above this is a core line for freight and Intercity services, as well a Metro route, so it desperately needs to be quad tracked.
Building elevated structures for four tracks through here, plus stations, I assume would be prohibitively expensive. So the design calls for road-over.

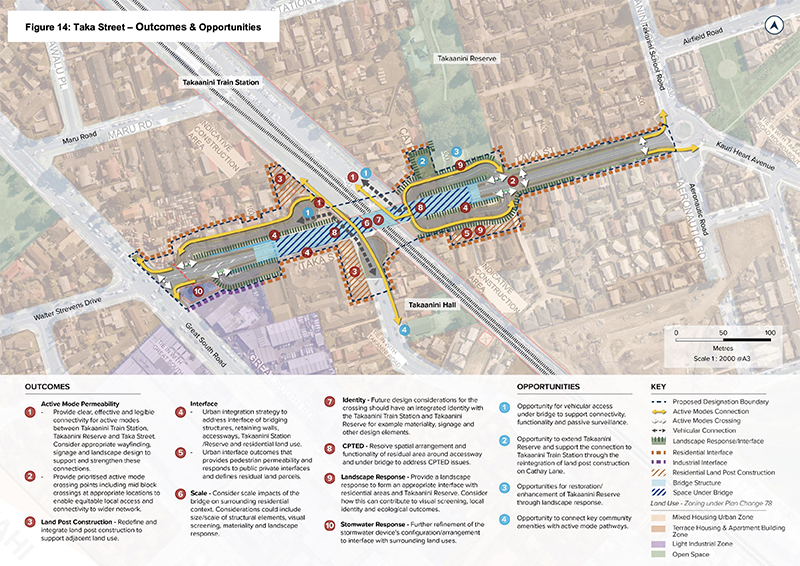

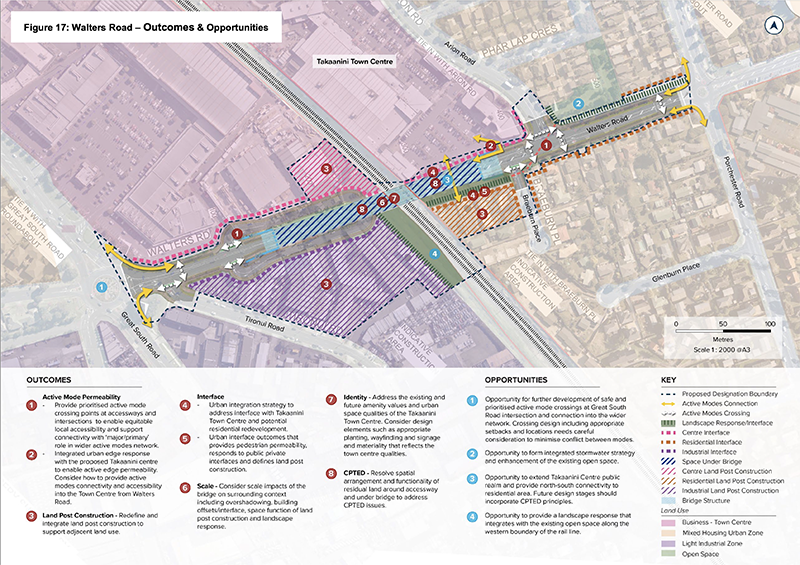

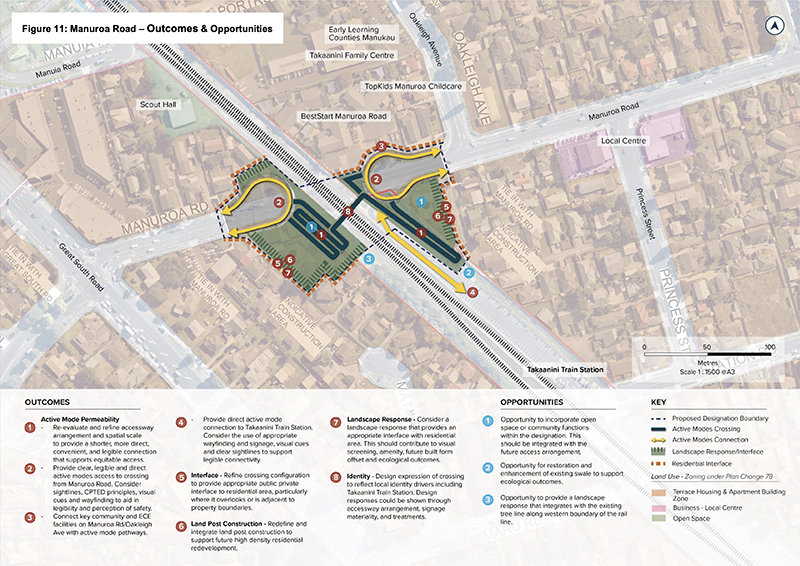

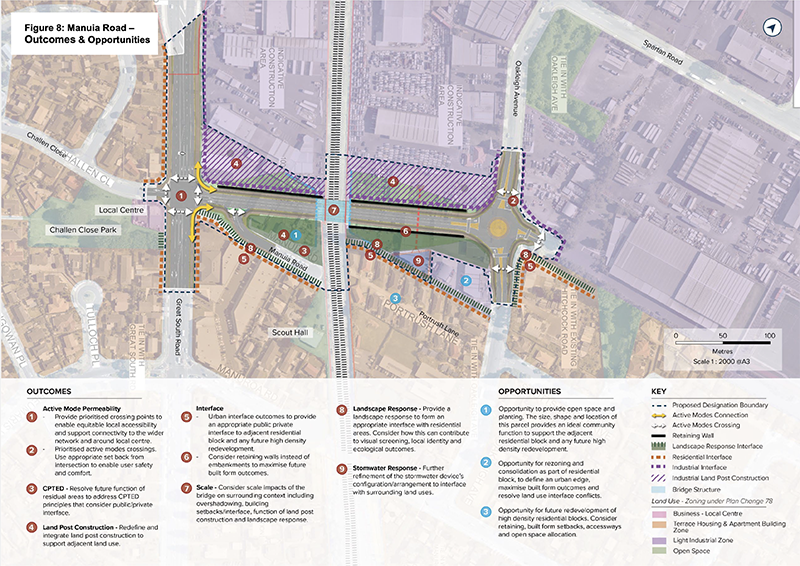

Let’s look at the planned outcomes as assessed by the Supporting Growth Alliance:
![](https://i0.wp.com/www.greaterauckland.org.nz/wp-content/uploads/2024/07/Manuia-Outcomes.png?w=1140&ssl=1)
![](https://i0.wp.com/www.greaterauckland.org.nz/wp-content/uploads/2024/07/Manuora-Outcomes.png?w=1140&ssl=1)
![](https://i0.wp.com/www.greaterauckland.org.nz/wp-content/uploads/2024/07/Taka-St-Outcomes.png?w=1140&ssl=1)
![](https://i0.wp.com/www.greaterauckland.org.nz/wp-content/uploads/2024/07/Walters-Rd-Outcomes.png?w=1140&ssl=1)
This is a big road project. Building these bridges to carry vehicles over the railway line involves taking a lot of land and buildings, and leaves a whole lot of either embankments or retaining walls, or even at-grade parallel access roads and nasty under-bridge spaces.
I note these are called out in the report as needing resolution of ‘CPTED issues’ – i.e., they will look and feel unsafe for people passing through the area, and that will require addressing.
A particular mystery is why Takaanini Station is not moved a little north or south so the overbridges can get double value as grade-separated platform access?
The Manuroa pedestrian overbridge would surely be more useful if it also offered access to the platform currently 124m away. Or perhaps it would be better to shift the station south, given it is more than 3.5km south to Papakura Station, but 1.6km north to Manuroa. (Ever since the closure of the Tironui station there is a big gap here, and this should be re-evaluated as housing grows in the area).
It certainly seems odd to grade-separate the roads but not the stations themselves – especially while building elevated structures. Why would you miss that opportunity? Though of course I know the answer to this, my old adversary; scope. Whoever controls the scope controls the project, and clearly station access grade-separation was not included in this road project.
For all the efforts of the authors of the urban design evaluation report, this whole approach looks ghastly, very land-hungry, and not inexpensive:
I wonder if there is an option to revisit other alternatives? Perhaps trenching the rail line – after all, piling a space wide enough for four tracks shouldn’t cost much more than for two.

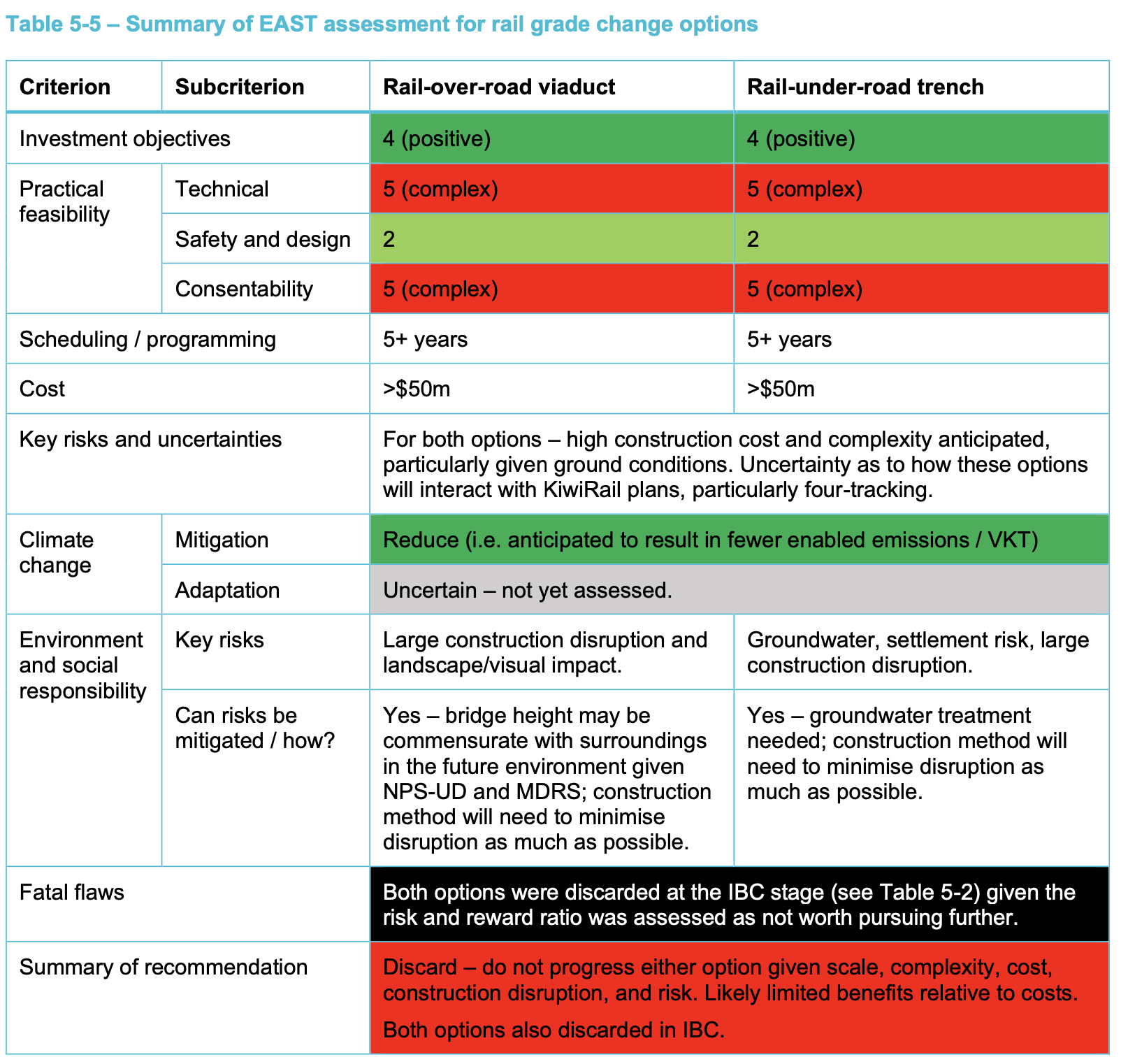

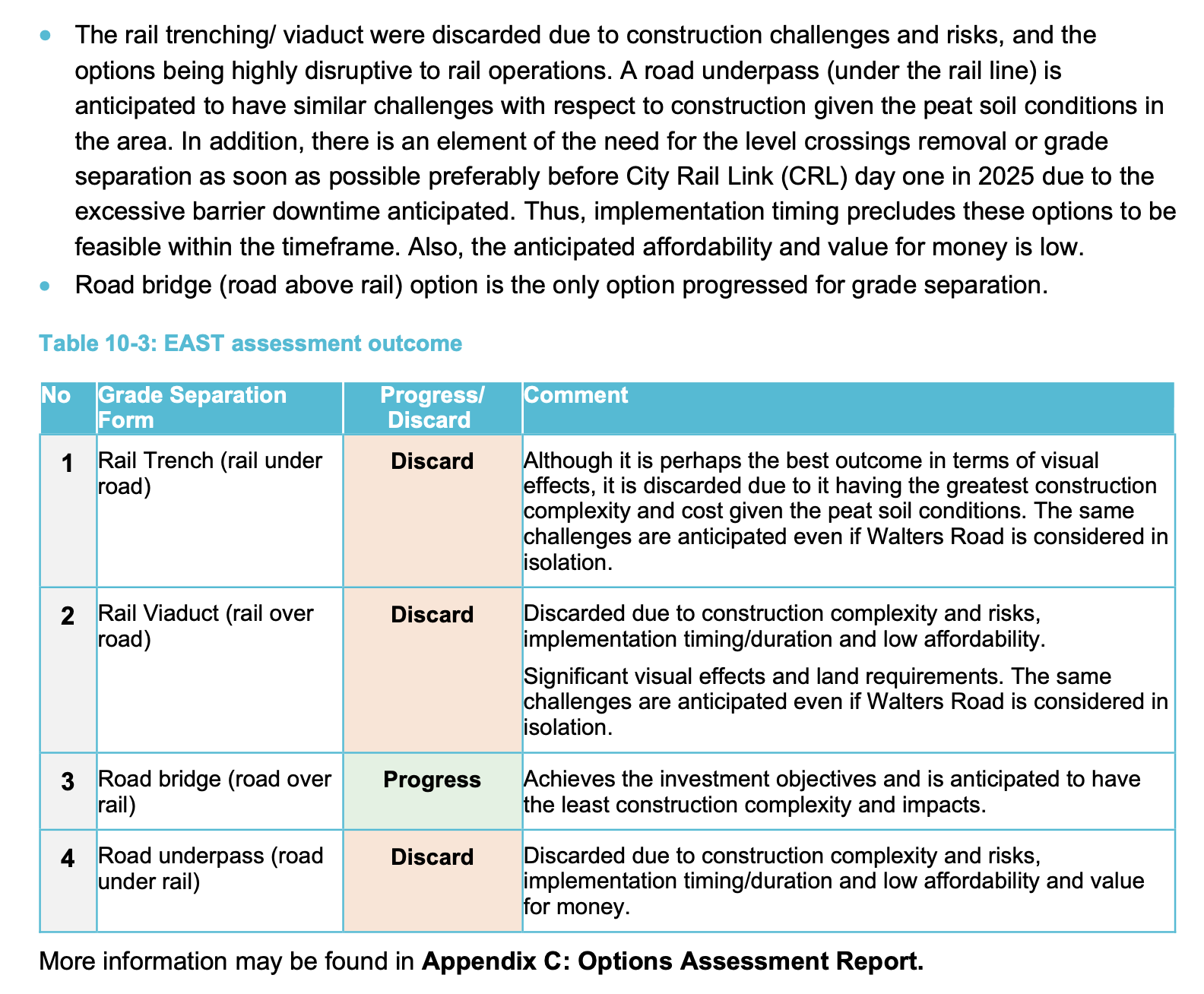

And the process of discounting this option looks to have been fairly cursory. It appears to pretty much be the following MCA, without any detailed engineering analysis. Indeed, the DBC describes the rail trench as having ‘perhaps the best outcomes in terms of visual effects’. Here’s the documented process:
![](https://i0.wp.com/www.greaterauckland.org.nz/wp-content/uploads/2024/07/LXC-options.png?w=1140&ssl=1)
![](https://i0.wp.com/www.greaterauckland.org.nz/wp-content/uploads/2024/07/LRX-MCA.png?w=1140&ssl=1)
DBC Appendix C
To summarise. It’s great this level crossing removal (LXR) programme is funded, and I hope it can be accelerated in this RLTP period. I hope that it can also accelerate the delivery of the third and fourth mains, and deliver improved place quality – nicer, safer public realm – and much better local access for all modes, enabling bus and bike connections to the rail services.
Improving throughput, reliability, and speed through the core NIMT will really help unlock the currently nearly-there rail programme to deliver us a much more capable urban network.
