The Nelson St Cycleway has been a fantastic addition to the city and phase two, from Victoria St to Market Place is currently under construction. Auckland Transport are now consulting on the third and final stage which will see the cycleway extended to link in to the Quay St cycleway.

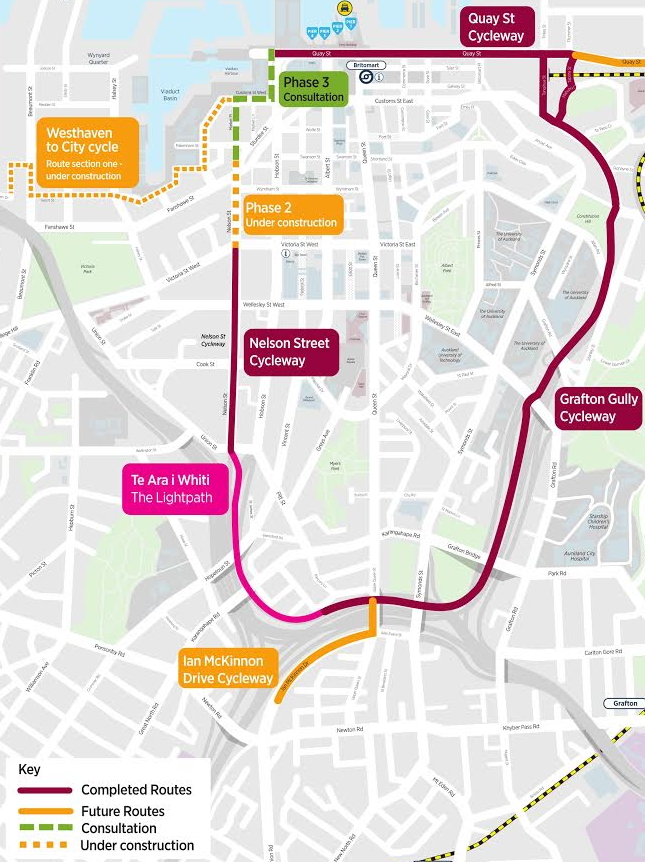

The route will see the cycleway travel along the tree lined Market Place, before turning down Customs St west and then along Lower Hobson St. This is shown on the map below. You may recall this route was the outcome of an earlier consultation in which AT had proposed sending the cycleway along Sturdee St and would have been a poor, and less attractive, outcome for users.
As part of the proposal there will be a number of changes to the three streets, including turning Market Place into a one-way street. AT have broken the information down into three sections, one for each of the affected streets. Here’s what AT have to say about them:

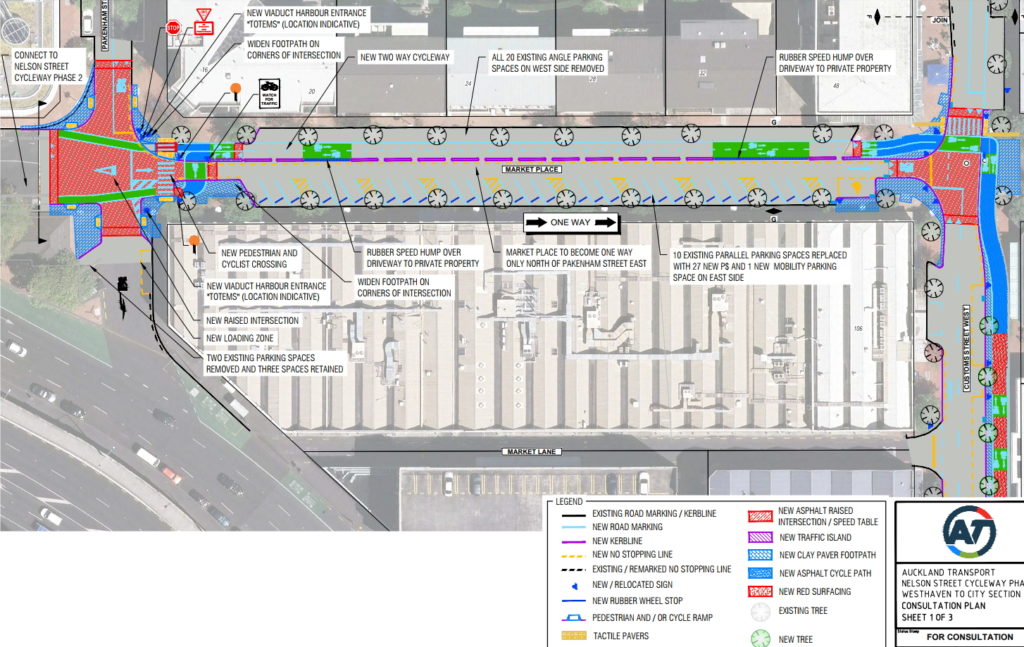

Market Place (between Pakenham Street East and Customs Street West)
To create space for the cycleway and retain parking, we would need to change Market Place to 1-way northbound traffic movement only.
The cycleway would be located on the western side of the road at road level, separated from traffic by raised buffer islands and at driveway crossings by rubber speed humps.
Angle parking on the western side of the road would be removed, and parking on the eastern side would change from parallel to angle parking. This rearrangement minimises the loss of parking on Market Place to only two spaces.
Trees along Market Place would be retained
Removing an entire direction of traffic must have caused consternation for some at AT but good on those involved for looking at the option. In addition to the cycleway, the new pedestrian infrastructure, like the crossings on the raised tables at each end of the street, will help improve walkability and be a welcome addition to the plans.
Moving on, here’s what is said about the 4th of the series

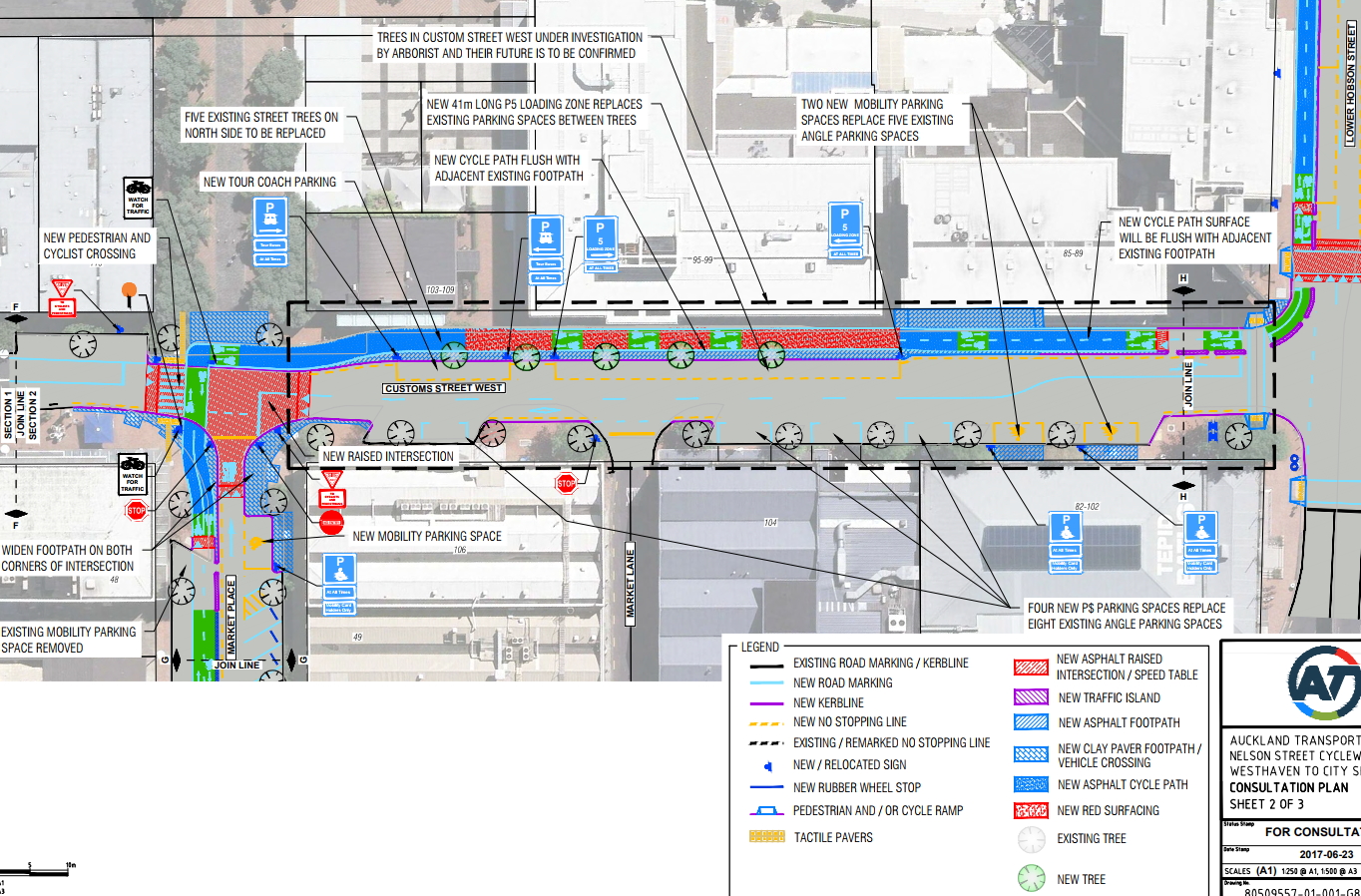

Customs Street West (between Market Place and Lower Hobson Street)
We propose locating the cycleway on the northern side of the road and separating it from traffic by raising it level with the existing footpath.
So deliveries are not impaired, we would ensure surfaces are flush by using painted and/or textured surfaces to delineate walking and cycling areas.
A buffer zone in the first 1.2m of footpath would provide a landing area for deliveries.
A 41m loading zone (which is greater than the current loading allocation) would be installed adjacent to the footpath.
Delivery people and other users would need to cross the space allocated for cyclists, and care would need to be taken while everyone adjusts to the new arrangement.
Some trees may need to be removed or relocated.
Four car parks on the north side of the road would be removed, and the angle parking on the south side would change to parallel. Overall, the number of car parks would reduce by 16; however, this would be offset by large car parking buildings in the area.
The thing that concerns me the most about this section is that the proposed layout (on AT’s site) shows the cycleway at just 2.8m wide which is fairly narrow.
and the final section

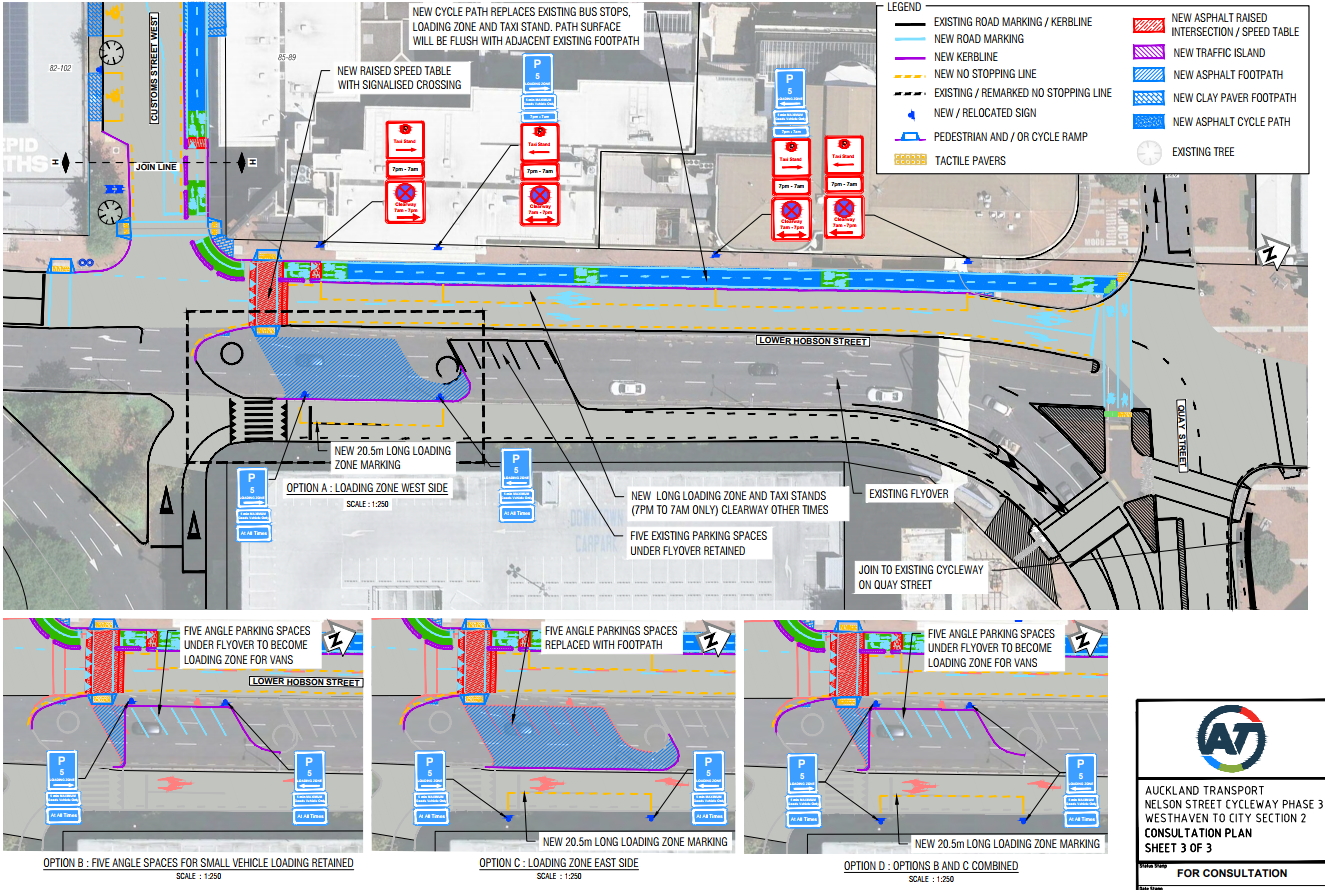

Lower Hobson Street (between Customs Street West and Quay Street)
We propose locating the cycleway on the western side of the road and separating it from traffic by raising it level with the footpath.
So deliveries are not impaired, we would ensure surfaces are flush by using painted and/or textured surfaces to delineate walking and cycling areas.
The tour coach parking would be moved to Customs Street West. The Explorer Bus would be relocated outside of the project area.
The loading zone and taxi stand would shift to the outside edge of the cycleway, and operation would be restricted to between 7pm and 7am. This would mean that, during the day, we maintain 2 northbound traffic lanes.
For daytime loading activities, we are proposing a number of options, including re-allocating 7 car parking spaces to 5 Loading Zone spaces under the adjacent flyover for smaller delivery vehicles and providing a 20.5m loading zone on the eastern side of Lower Hobson Street. The design plan shows 4 options, and we would like to hear from delivery people which arrangement would best support deliveries in the area.
A raised crossing at the traffic lights where Customs Street West meets Lower Hobson Street would provide flush access between the new loading zones and the western side of Lower Hobson Street.
Overall I think AT have done a decent job here. It’s a pretty tricky area of town to thread things through.
Feedback is open till Sunday 1 October.
