The Airport over the last two months have made their plans for what they call Auckland’s Airport of the Future more concrete.
The AIAL Masterplan is a few years old so let’s first start with a refresh/recap as it is quite interesting.
https://www.youtube.com/watch?v=9dHaj3DP3CU

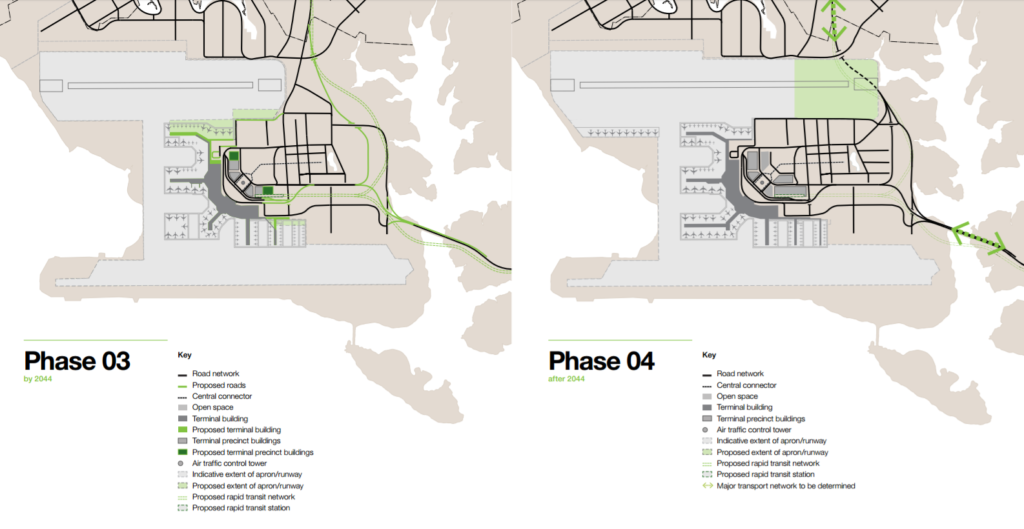

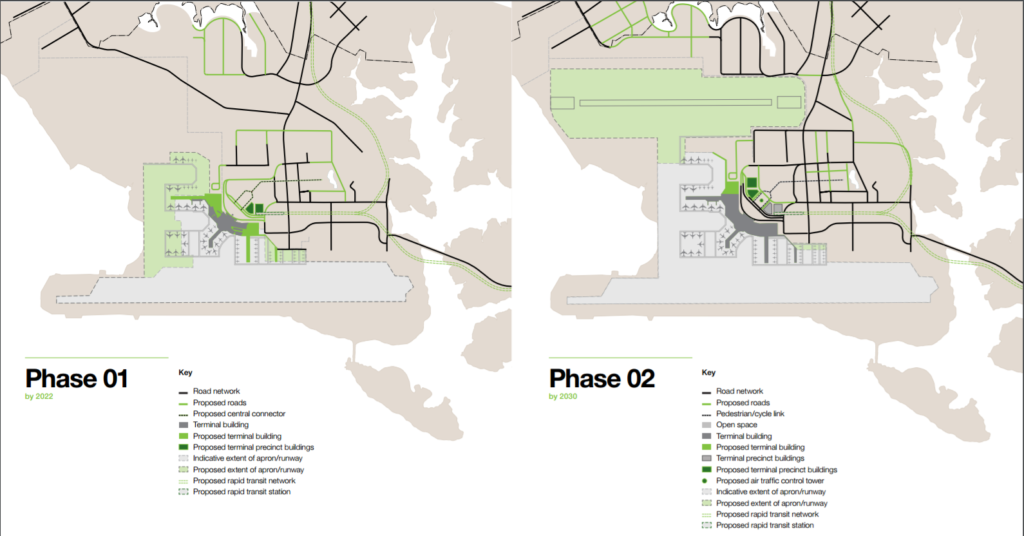

In 2014 AIAL released their master plan for the next 30 years, in it included:
- A combined International/Domestic Terminal, increasing Aircraft Parking from 56 to 94 spaces, a new Air Traffic Control Tower as well as a new terminal plaza with shops & hotels by 2022. Auckland Airport believes they can delay the need for a second runway until the late 2020s-2030 with these upgrades.
- A new 2150m long Northern Runway by 2030.
- Northern Runway extension of 890m which will require tunnelling SH20A as well as the future RTN, as well as more Aircraft Parking potentially by 2044.
The new plan also included plans for the Airport to be integrated with an RTN, and the development of over 308 hectares in the land around the Airport known as the District which along with the Airport will result in approx 27000 more jobs on top of the current 20000 jobs around the Airport.
Auckland Airport is predicting that
- By 2030 carry 10000 long haul passengers per day.

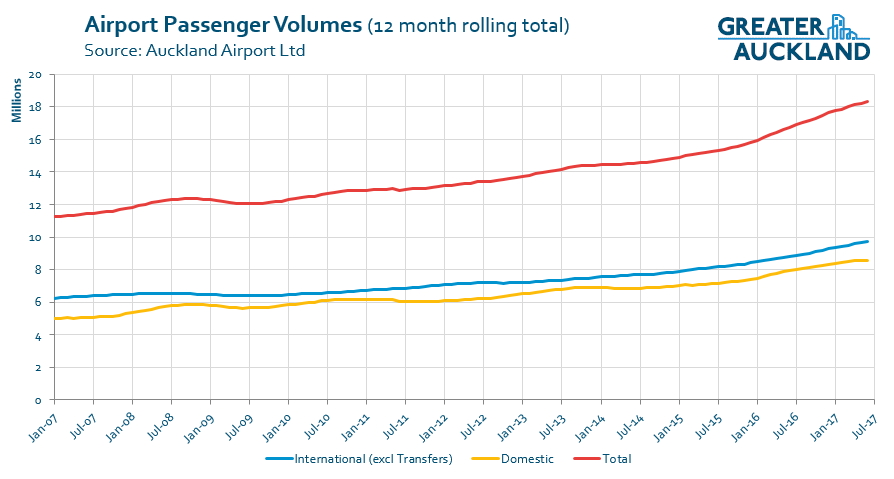

- That daily trips will increase from 63000 to 140,000 by 2044.
- Move from 14 million passengers a year & 420+ flight movements per day to 40 million passengers a year & 775+ flight movements per day.
Transport will be improved by:
- A new road network that will separate visitor, commercial & staff traffic.
- Provision for a future RTN Station.
- 20000 Parking Spaces.
- A boulevard for pedestrians/cyclists connecting the Airport & the District.
In June this year, the Airport renewed their commitment to the Airport of the Future Plan. Noting since 2014 passengers have grown 26% while at the same time the number of international airlines has grown significantly, with a 61% increase in just 22 months. In response, Auckland Airport has announced they will invest $1.8b in CAPEX by 2022 with key projects being
- Upgrading the international departure area;
- 3 new gates for international aircraft increasing capacity;
- New domestic jet terminal joined onto the existing international terminal meaning Auckland finally will have a combined terminal;
- Improving border processing area and public arrivals space;
- Upgrading the check-in area; and
- Investments in public transport, roading and walking projects.
The Airport has also reconfirmed its intention of building the second runway by 2028 with works potentially starting in 2020-2021 introducing a runway land charge of $1.19 per passenger when the actual build is confirmed. $202m has been committed for the preliminary works & planning over the next few years.
The Airport also now wishes the second runway to be built 72m north & to the full length about 890m longer from the beginning allowing it to be used for all international aircraft except the A380 Superjumbos, rather than just domestic flights as first intended, however, the new northern runway still intends to have an overnight curfew. The extended runway will mean that George Bolt Memorial & the future Mass Transit will need to be put into a cut & cover tunnel under the new runway. However, the latter was already planned to be built so ready and thus already future proofed for any runway extension.
So what do you think of the Airport of the Future?
Please, no LRT vs HR vs Bus on this one plenty other posts you can make those arguments on.
Processing...
It looks like they’re not really committing to anything on the PT front at all. I guess they just expect that more passengers (and workers) will simply materialise out of thin air on their doorstep (and dematerialise once not required any more). Sad.
I agree. If the airport expansion travel demand growth necessitates a rail connection (heavy or light) then they should be required to display how they propose to accommodate the that link. I would expect that the need for any LRT south of say, Mangere Town Centre, would be driven entirely by the need to ameliorate the transport impact of the airport.
Last I knew (prior to the LRT announcement), the Airport were trying to get some solid direction out of AT about it. Obviously the decision lies with AT/NZTA, but it was messing with the Airports long term planning about which way AT/NZTA were going to go.
I got a little bit of a feel that one of the reasons NZTA said they would commit to LRT was so that the Airport had something to work with.
In fairness At don’t have plans for airport rail until the third decade (2038 – 48) so there is no point the airport building anything in the near future as long as they plan for it.
Its D2 not D3
perfect, AIAL are planning to finish the runway in 2028, so they can build the trench for the PT route which AT can then immediately start connecting up to the rest of the route.
We will have to tunnel SH20A under as well so could be done same deal as Kirkbride
But it won’t be (and you know it).
Woops, so it is.
How true is this now…. Legit all they have done is they have added the Hotel, 1 Retail complex and the transport hub… 7 years later.
They also have said in 2038 they will be looking to open the DESPERATELY NEEDED second runway. Still curious as to what they will do with that second terminal? Are they going to just leave it there… Or could they turn it into a real-world training centre
Honest question:
Is there any particular reason the airport has ruled out above ground rail? It adds a lot of cost to the project.
Can’t rail be built on SH20A and then tunneled when the airport actually builds this new runway?
I’ve always got the impression they have a strong tunnel bias for no particular reason.
Since the Airport intends to build the runway full length from the start makes sense to build it under future proofed ready so no future disruption to services.
Better to trench/tunnel from the start otherwise the railway line would need to be rebuilt.
So where does the regional aircraft fit in (ie ATR and Dash 8). Guess they will use up the rest of the current domestic terminal once the Domestic Jets go to their new one.
The issue is the different tiers of security and the ability to use swing gates…….which means that domestic jets can park and be used next to international (eventually)…..the current domestic process is extremely efficient (one of the fastest in the world) and putting regionals into the main terminal will mean have to bring these regionals up to a higher security level……..increased costs and time for passengers meaning they routes are less viable. …….expect to see a significant separation of regionals (which will annoy some but be better for most)………ardmore was probably even considered.
Why would putting them in the same terminal mean they have to be brought up to higher security level? They currently share a terminal with domestic jets that require security.
Changes in caa rules are on the way.
So that will apply to Wellington, Christchurch, Queenstown and Dunedin as well? Christchurch has only just rebuilt it’s terminal so I can’t imagine they will be happy.
I would like to Request to Upgrade an New Southern Runway and Taxi system Navigation aids Upgrade New Expansion Terminal 1 Auckland International Airport, Upgrade New Terminal 2 Auckland Domestic Airport with Second North Runway Expanded New Security Broader
Probably going to be that secondary terminal. Wouldn’t mind if they used it as a training centre for pilots etc.
Best practice is for the Rapid Transit station to be integrated into the Terminal building, not stopping across the road from it. This plan, if still current, forces unnecessary numbers of people crossing roads to access the station. Surely this will change.
2014 Plans were based on an underground HR station I believe LRT is in the North facing end of the terminal.
Either way the mixing of pedestrian pathways and other ground transport (buses, taxis, cars etc) is the key issue. Another overlay is the point at which bags are dropped and how you prioritise customers. It is also worth noting that that public transport connections are justified by staff transport needs not passenger needs and development of a connection that also serves hotels, offices and other landslide destinations is important. The aerotropolis model is the trend and this definitely doesn’t mandate pt to the terminal…….especially for trains you would do bag drop at Britomart.
Non-terminal could work really well with a level airbridge from the platforms to the check in desks over the roads.
RE: Bag drop – Do we have a system for this already? If not, I’d love for our major hotels and airlines to organise this. In Hong Kong for example, you can check in at either Hong Kong (Central) or Kowloon (Jordan) stations of the MTR. You can also collect your boarding pass there, up to a day in advance (or 90 mins in advance if you like to cut it fine).
All we’d need in Auckland is just the one depot and, as you say, Britomart is the obvious choice.
I think I prefer the idea that You’d check your bag in at your hotel they would have an underground system that connects to the main bag drop. Have those by the transport hub too.
Like the Manukau Station cock-up?
I haven’t been there – what’s the cock-up? Does it not work well as a station, or is it that it does not connect to the airport? Or something else?
Instead of bringing the station close to the shopping centre and rainbows end they put it right on the fringe. It’s a very long walk in the rain, thanks AT
I think the position of the Manukau station was the decision of the legacy Manukau City Council and was a compromise based on that council saving money.
They probably don’t want to provide too much PT incase it endangers their parking revenue.
I think they are more aware now that they are not sustainable without an RTN connection. The airport will eventually collapse under its own weight of vehicle traffic, which will only boost the case for a second airport at Whenuapai.
Sustainable? They’ll just pay some Bulgarians to pretend to plant some trees (that’s NZ’s policy).
You’re onto it.
Why can’t Auckland Airport simply have something like this?:
https://railgallery.wongm.com/albums/suburban-brisbane/F107_8249.jpg
They don’t work so well over top of a runway!
The elevated single rail track was just done for construction reasons after the terminals were built
OMG that’s ugly! 🙂
Should they make provision for an intercity rail terminal at the airport. Who would be the bigger users of an intercity link commuters or air travellers?
I’d imagine it would be commuters. I doubt there would ever be enough people travelling from Hamilton to Auckland Airport to justify a specific train service, better to have a quality RTN connection at Puhinui.
The Intercity station for Airport will be at Puhinui.
is that in anyones plans yet?
(Airport connection from Puhinui?)

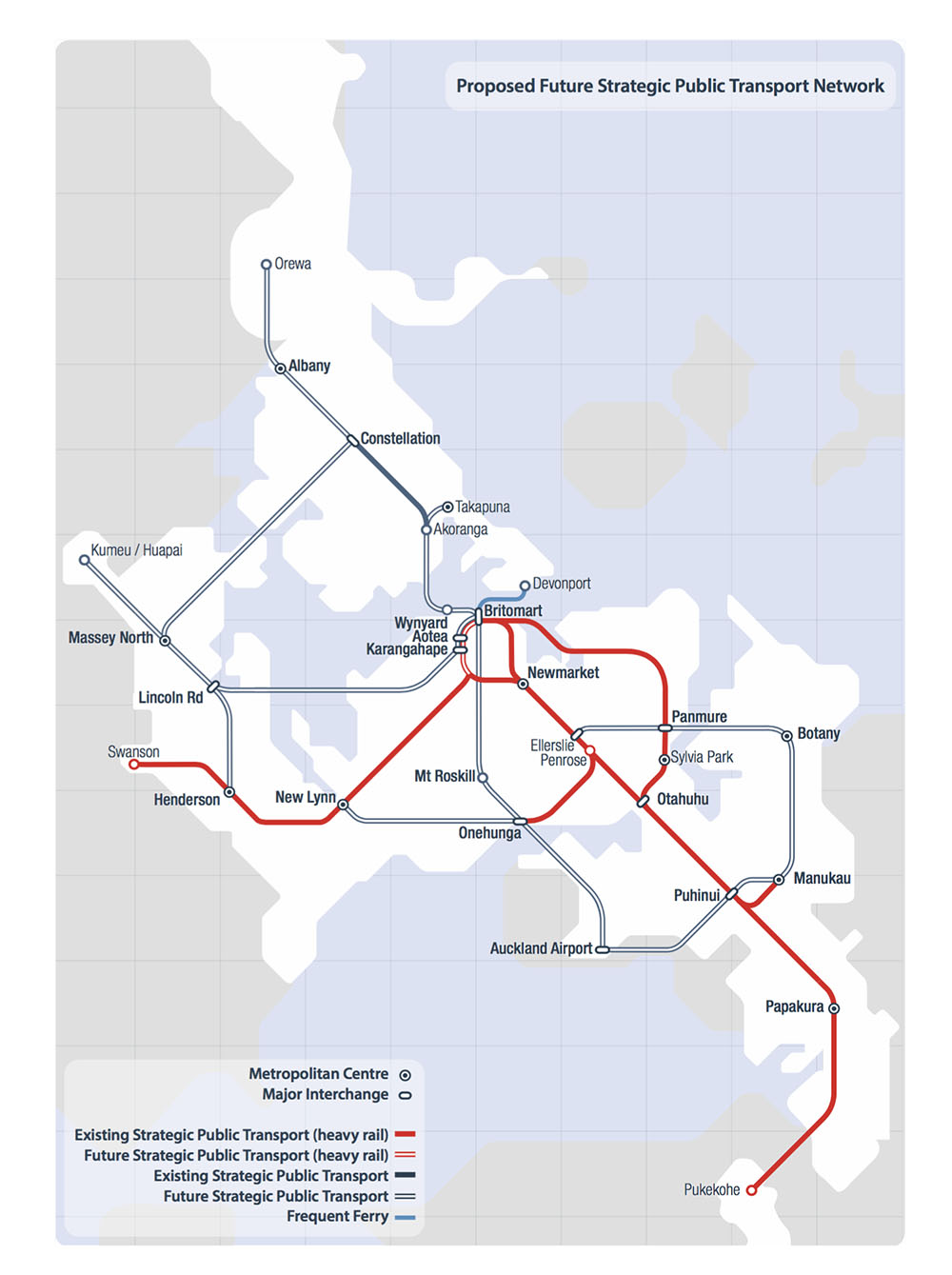

http://www.greaterauckland.org.nz/wp-content/uploads/2017/03/ATAP-RTN.jpg
